Halyard Shackles

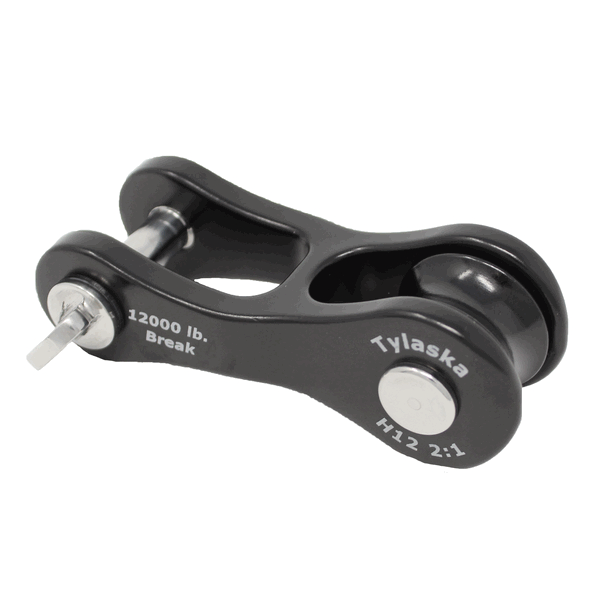

H12 2:1 Aluminum Halyard Shackle With Sheave

H12 2:1 Aluminum Halyard Shackle With Sheave
  • Main photo
  • Photo 2
Item Attributes
Part No TY1512
Unit of Measure EACH
A 103.6 MM
B 38.1 MM
Breaking Load 5440 KG
C 7.9 MM
D 50.8 MM
E 31.7 MM
F 22.4 MM
G 16.8 MM
H 28.4 MM
I 36.5 MM
J 9.7 MM
Line Size 11-16 MM
Safe Working Load 2720 KG
Weight 180 G
Using a high strength composite sleeve bearing, Tylaska has created true 2:1 halyard shackles capable of handling the full rated load of the shackle. The size was made to fit standard sail headboards without adding any unnecessary weight. Strength was optimized by computer and then verified by numerous destructive tests.
